ardubroke

Table of Contents


Overwiev

Ardubroke is an hardware password wallet.

Software

Source repository are available on the codeberg.org website.

Hardware


Board connections.

OLED display

Use I2C reference on the arduino.cc website.

  • GND to ground (-);
  • VCC to +5V;
  • SCL to A5 (analog 5);
  • SDL to A4 (analog 4).

SD reader

Use SPI reference on the arduino.cc website.

  • CS to pin 10;
  • MOSI to pin 11;
  • MISO to pin 12;
  • SCK to pin 13;
  • GND to ground (-);
  • VCC to +5V.

Joystick

  • GND to to ground (-);
  • +5V to +5V; :-)
  • VRx to A1;
  • VRy to A0;
  • SM to A2.

Button

  • S to pin Digital 2 (D2);
  • '-' to ground (-);
  • the center pin to +5V.

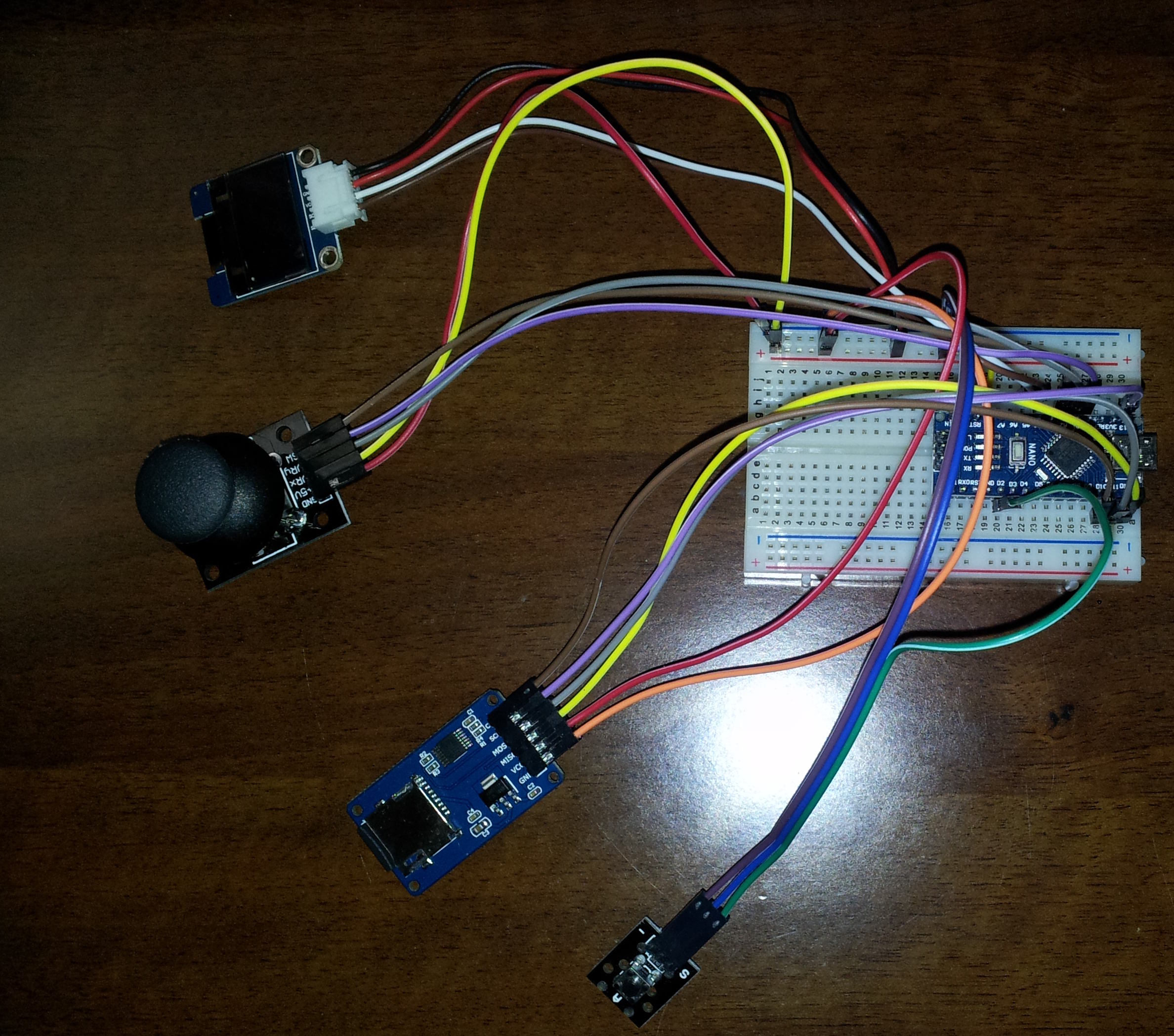

Maybe a bigger photo will help a bit.
